Marine Buoyancy · Modular

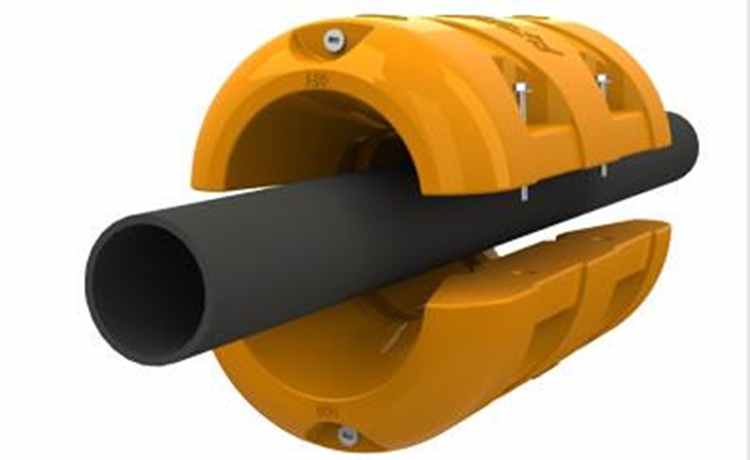

HDPE Pipe Floater
Bolt-on floats keeping your pipeline riding on the surface.
Every floating dredge line needs the same thing — reliable, modular buoyancy that doesn't punish the pipe underneath. Our rotomoulded HDPE pipe floaters clamp around the main in matched pairs, delivering the exact reserve buoyancy your project engineer specified.
Key Features
Why field crews specify Heartwork
Reserve buoyancy tuned
Sized in matched pairs for the calculated submerged weight of your loaded pipeline.
Wave & impact tolerant
Rotomoulded HDPE shell shrugs off tow-boat contact and wave-driven collisions.
Tool-less bolt-on
Two-piece design clamps around pipe with stainless bolts — no fusion, no lifting equipment.
UV & salt stabilised
Signal orange stabilised for 8+ years of continuous offshore service.
Variants In This Line
Choose the configuration that fits your job
01
Standard Air-Core Floater
Lightweight buoyancy for calm-water and inland reclamation lines.
02
PU-Filled Reinforced Floater
Closed-cell polyurethane fill for open sea and heavy-tow service — punctures don't sink you.
03
Deep-Water Compact Floater
High-density design for high-pressure differentials and long submerged periods.
04
Marker / Warning Buoy
Signal-orange buoys for pipeline route marking, mooring and safety cordoning.
Specifications
The technical range
| Fits pipe | DN 200 – DN 1200 |
| Shell material | Virgin HDPE, rotomoulded |
| Core | Air chamber or closed-cell PU foam |
| Colour | Signal orange (custom on request) |
| UV stabilisation | 8+ years continuous outdoor service |
| Assembly | Two-piece clamshell · stainless fasteners |
| Operating temperature | -40 °C to +60 °C |
| Buoyancy range | 50 – 1200 kg per pair |
All specifications are customisable to project requirements — send your drawing for a matched proposal.
Applications
Where it deploys
- Floating dredge lines
- Land reclamation across water
- Aquaculture cage mooring
- Offshore pipeline route marking
- Oil & gas boom deployment
